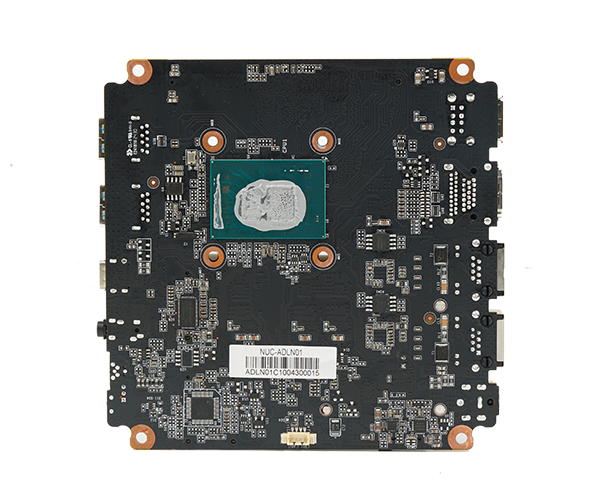

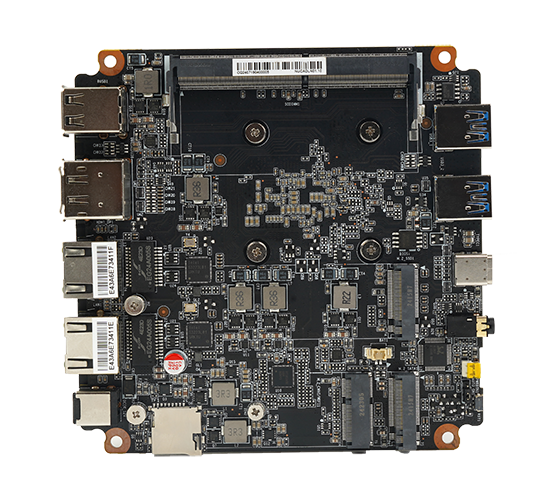

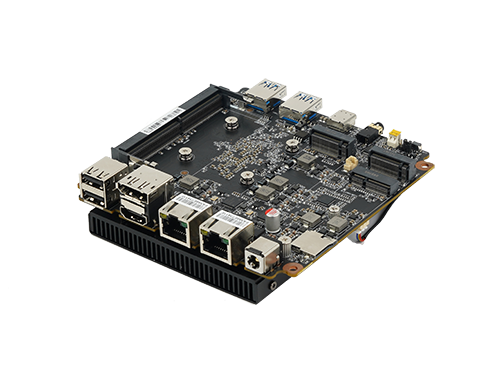

Zeroone/Limyee Alder-Lake NUC Mini - PC Industrial control motherboard
类别:
组件: 主板: NanoITX
关于此报价
Support for Intel ®Alder Lake-N (N305/N100/N97/N95) Processor. Support for single-channel SO-DIMM, DDR4 3200 MHz,Max 16 GB. Support DP + HDMI + Type-C display output, three-show asynchrony. Onboard 2 Intel i 226 network card (rate 2.5G). Support 2 USB3.0 Gen 1 (5 Gbps) + 1 Type-C + 2USB2.0; 1 M. 2 MKey, support SATA / NVME adaptation(Optional 2 M.2 M Key, SATA support);1 M.2 E Key, support for Wifi / Bluetooth module extension. DC 12V Power supply.
技术规格
- 类别:
- 组件: 主板: NanoITX
- 最终客户类型:
-
中小企业
企业
资源
发布日期:
Jan 15, 2025
采用的英特尔技术
英特尔® 酷睿™ 处理器
英特尔® 酷睿™ i3 处理器 N 系列
Zeroone
由于技术问题，我们无法提交表格。请过几分钟再重试。对由此给您带来的不便，我们深表歉意。
Zeroone
recaptcha 已识别出当前的交互类似于机器人，请重新加载页面或稍后重试。
Shenzhen ZEROONE Technology Co., Ltd. 是一家集嵌入式主板（X86 架构）研发、生产、销售和维修四位一体的创新高科技企业。 公司自有品牌是 ZEROONE 和 UARM。我们的电力生产车间现已竣工，我们拥有完备的 SMT 和 DIP 生产线、装配线、专业测试和分析设备。此外，公司拥有国内杰出的研发工程师、项目管理人员并拥有完善的制造服务体系。 ZER...
Zeroone/limyee Alder-lake Nuc Mini - Pc Industrial Control Motherboard
您的索取信息请求已成功发送至 Zeroone
More Solutions from this Partner
提供
Support for Intel ® 13thRaptor Lake & 12thAlder Lake (U / P / H series). Support for dual-channel SO-DIMM, DDR4 3200MHz, Max64GB. Support LVDS / EDP 1 + EDP 2 + HDMI (4k 60Hz) + VGA, four show asynchronous. Onboard 1 RTL8111H Gigabit network card (optional dual network). Support 2 USB3.2 Gen2 (10 Gbps optional 1 type-C); 2 USB3.0 Gen1(5 Gbps); 7 USB2.0; Support 6 COM RS232; COM1 supports TTL optional, COM2 supports RS485 / 422 / 232 optional, and COM3 supports RS485 / 232 optional; 1M.2 M Key, support SATA/PCIE4.0X4 adaptation; 1 SATA 3.0 Port; 1M.2 B Key, support 4G / 5G module expansion; (5G needs to communicate with business selection); 1M.2 E Key, support for Wifi6 CNVi / Bluetooth module expansion; DC / 4Pin ATX 12-19V wide voltage power supply; support system backup / restore (shortcut key).
提供
Intel® 14th Gen Lake U/H Processor (125H/155H). Supports dual-channel SO-DIMM, DDR5 memory, 5600MHz, Max96GB. Supports three displays simultaneously and asynchronously, DP + HDMI + TypeC. Supports Intel dual network ports (2.5 G). 4 USB: 2 USB3.2+2 USB2.0; 1 Type-C interface (Thunderbolt4 40Gbps/Display/Power Support); 1 M.2 M Key Slot (SATA/PCIEx4 Adaptive); 1 M.2 M Key Slot (SATA);1 x M.2 E Key slot (WIFI/Bluetooth).
提供
Support for Intel ®Alder Lake-N (N305/N100/N97/N95) Processor. Support for single-channel SO-DIMM, DDR4 3200 MHz,Max 16 GB. Support DP + HDMI + Type-C display output, three-show asynchrony. Onboard 2 Intel i 226 network card (rate 2.5G). Support 2 USB3.0 Gen 1 (5 Gbps) + 1 Type-C + 2USB2.0; 1 M. 2 MKey, support SATA / NVME adaptation(Optional 2 M.2 M Key, SATA support);1 M.2 E Key, support for Wifi / Bluetooth module extension. DC 12V Power supply.
提供
Support Intel® Tiger Lake-UP3 Processor (1135G7/1145G7, etc.). Support dual-channel SO-DIMM, DDR4 3200MHz, Max32GB. Support LVDS1/EDP1+EDP2+ HDMI+VGA output, four displays synchronously and asynchronously. Onboard 1Realtek RTL8111H/8111G Gigabit network card(optional dual network). Support 2USB3.2 Gen2 (10Gbps), 2USB3.2 Gen1 (5Gbps). 7USB2.0; 6COM (supports COM2/3 two-way RS485). 1M.2 M Key supports PCIEX2/SATA adaptive; 1SATAⅢ(6.0Gb/s). 1M.2 E Key, supports Wifi6/Bluetooth module expansion; 1M.2 B Key, supports 4G/5G module expansion (optional);1SIM card slot; DC 12-19V power supply (12V requires a 7A or above adapter).
提供
Support Intel® 12th Gen Alder Lake-N Processor(N50/N100/N200/N300/ N95/N97/N305/etc.). Support single channel SO-DIMM, DDR4 memory, 3200Mhz, Max 16GB. Support triple view display synchronous/asynchronous, LVDS1/EDP1 + HDMI +DP. Support Intel gigabit dual LAN ports. Support system one-key recovery and keyboard shortcut backup/restore. DC 9-36V wide voltage power supply; 10USB: 4USB3.2 + 6USB2.0; 6COM (COM1 supports TTL optional, COM2/COM3 supports RS232/485 optional) ; 1M.2 M Key slot (SATA/PCIEX1 self-adaptive) ;1SATA3.0; 1M.2 B Key slot (4G/5G), optional 1M.2 E Key slot(WIFI/Bluetooth). Product applicable industries For industrial tablets/industrial control terminals used in industrial automation sites. For small terminals used in kiosks, point of sale (POS) systems, digital signage, medical equipment, queue machines, etc.
提供
Support Intel® 12/13th Gen Alder Lake & Raptor Lake(U/P/H) Processor. Support dual channel SO-DIMM, DDR4 memory, 3200MHz, Max64GB. Support quad view display synchronous/asynchronous, DP+HDMI+TypeC1+TypeC2. Support Realtek giga dual LAN port (optional single LAN port) . Support system one-key recovery, and keyboard shortcut backup/recovery. 4USB: 2USB3.2+2USB2.0; 2Type-C (one supports thunderbolt4 40Gbps, the other one supports full-featured DP1.2/1.4 display, USB3.2, 5V3A power supply); 1M.2 M Key slot (SATA/PCIEx4 self-adaptive) ; 1M.2 E Key slot (WIFI/Bluetooth).
提供
Intel ®Alder Lake-N (N305 / N100 etc) series processors, Support for single-channel SO-DIMM, DDR 5 memory, up to 16GB support ;Support for three-show asynchronous, 2HDMI2.0+VGA；Support Realtek gigabit dual network port USB: 2USB3.2+4USB2.0；1 Type-C interface (USB3.0 capability supported only)； 1 COM interface supports RS232；1 MicroSD card slot; 1 SIM card slot One M.2 M Key slot (SATA 3 / PCIEx2) ；One M.2 E Key Slots (WIFI / Bluetooth) ；One M.2 B Key slot (5G)；Products are applicable to industries: home terminal, office PC, soft routing, education cloud desktop, etc
提供
Support for Intel® 13th Raptor Lake & 12th Alder Lake (U / P / H series)；Support for dual-channel SO-DIMM, DDR4 3200MHz, Max64GB；Support LVDS / EDP 1 + EDP 2 + HDMI (4k 60Hz) + VGA, four show asynchronous; Onboard 1 RTL8111H Gigabit network card (optional dual network)；Support 2USB3.2 Gen2 (10 Gbps optional 1type-C); 2USB3.0 Gen1(5 Gbps); 7 USB2.0；Support 6COM RS232; COM1 supports TTL optional, COM2 supports RS485 / 422 / 232 optional, and COM3 supports RS485 / 232 optional；1M.2 M Key, support SATA/PCIE4.0X4 adaptation; 1 SATA 3.0 Port；1M.2 B Key, support 4G / 5G module expansion; (5G needs to communicate with business selection)；1M.2 E Key, support for Wifi6 CNVi / Bluetooth module expansion; DC / 4Pin ATX 12-19V wide voltage power supply; support system backup/ restore (shortcut key).
提供
Product applicable industries: Applicable to industrial automation control, motion control, medical, etc. Intel® 14th Ultra Processor (125U/125H) ; Support single-channel SO-DIMM, DDR5 memory, 5600Mhz, Max 48GB；Support three displays synchronous and asynchronous, LVDS1/EDP1 + HDMI2.1 +DP；Support Intel dual network ports, support Vpro；Support system one-key restore and keyboard shortcut backup/restore；DC 9-36V wide voltage power supply；9 USB: 4 USB3.2 + 5 USB2.0；2 COM interfaces (standard RS232) ; 1 mSATA hard disk slot；1 mPCIE slot (WiFi / Bluetooth).
提供
(1) 处理器：英特尔® 8th/9th Coffee lake-H &Coffee lake-H 刷新处理器 BGA1440 4C/8T or 6C/12T vProTM 45w/(35w cTDP).(2) 芯片组：英特尔® HM370/HM375。显示器芯片：英特尔® CPU 内置显示器内核。(3) 显示器输出：DP1.2、HDMI1.4、VGA、HDMI2.0。(4) 多显示器支持：三显示器同步/非同步 USB: 4-USB 3.1+2-USB 2.0+1-C型 USB 3.1.(5) 内存：2-SO-DIMM DDR4 2666MHz 最大32G。(6) 音效：板载 realtek ALC662HD。(7) 音频解码器控制器NIC：Realtek RTL8111H 千兆网卡。(8) 存储：1-M.2 M Key（带 SATA 自适应的 NGFF PCIe X） 1-SATA_HDD（适用于 2.5" 固态硬盘）。
提供
英特尔® Baytrail 系列 CPU DDR3L 低电压内存，每条连接线支持高达 8 G 内存。MSATA 和固态硬盘。Mini PCIe、WIFI + 蓝牙、HDMI、VGA 和 LVDS 显示输出。双千兆位网卡支持 2/6 个 COM232，1 个 USB 3.0，6 个 USB 2.0，采用工业标准材料，确保稳定运行，持久耐用。超薄主板设计，低功耗质量保证。
提供
英特尔® CoffeeLake 和 Coffeelake-R 桌面 CPU 双通道 SO-DIMM DDR4。2666 MHz，最大 32 GB，VGA/HDMI/EDP 显示输出。双路显示同步/异步。2 个 Realtek RTL8111H 千兆位网卡，支持 4 个 USB 3.0，10 个 USB 2.0，12 个 COM 232。COM2 支持 1 个 RS232/422/485，同时支持 2 个 SATAIII、1 个 mSATA 和 M.2。WIFI 和 3G/4G模块，支持 PS/2 功能。PCIe1（第 3 代）扩展接口 4 针 ATX/20 针 ATX。
提供
英特尔® Alder Lake &Raptor Lake Processor、5 x USB3.2 GEN2 1xUSB2.0、2xDP1.4、2xHDMI2.1、2xSO-DIMM，DDR4 2666/2933/3200MHz Max64GB
